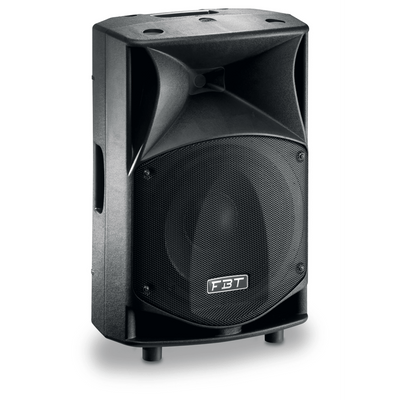

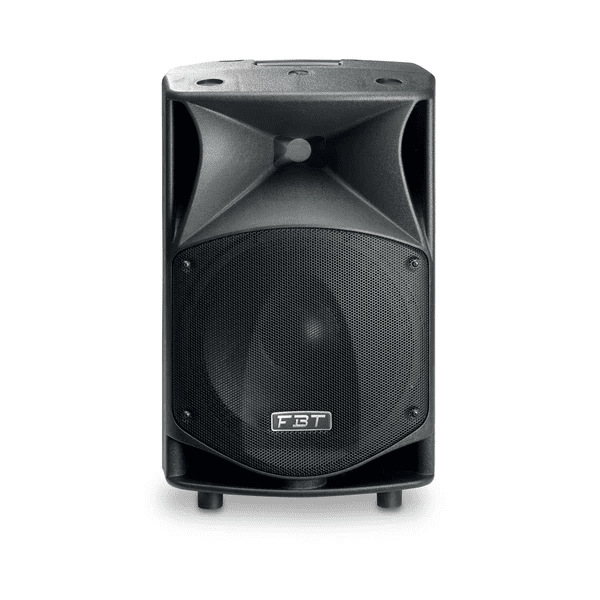

FBT Audio JMaxX 112A Active Loudspeaker
Powerful 12-Inch Active PA Speaker
The FBT JMaxX 112A is a professional processed 2-way active loudspeaker designed for live sound, DJ systems, stage monitoring, installations and portable PA use. Combining a 12-inch woofer, high-output compression driver, DSP control and powerful Class D amplification, it delivers strong output, clear projection and excellent versatility in a robust polypropylene enclosure.
Ideal for musicians, DJs, bands, schools, corporate AV, houses of worship, bars, clubs, theatres, gyms, auditoriums and rental sound reinforcement, the JMaxX 112A provides the power and flexibility needed for a wide range of professional audio applications.
900W RMS Class D Amplification
The JMaxX 112A features a high-efficiency bi-amplified Class D amplifier system, delivering 700W RMS for the low-frequency driver and 200W RMS for the high-frequency driver.
With a maximum SPL of 131dB, it offers impressive output for demanding live sound, DJ playback, speech reinforcement and venue installations.
12-Inch Woofer and HF Compression Driver
The speaker is equipped with a 12-inch LF woofer with 2.5-inch voice coil and a 1-inch exit throat HF compression driver with 1.4-inch voice coil.
Coupled to a 90°H x 60°V constant directivity horn, the JMaxX 112A delivers controlled coverage, accurate mid/high projection and strong low-frequency performance.
Lightweight Polypropylene Cabinet
The gas-injected polypropylene moulded enclosure is designed to reduce unwanted cabinet resonance while reinforcing low-frequency response.
A front steel grille protects the woofer from external damage, while the rugged moulded cabinet makes the JMaxX 112A suitable for both portable and installed use.
DSP with 4 EQ Presets
The built-in DSP includes 4 factory equalisation presets, allowing the speaker to adapt quickly to different applications and environments.
Suitable uses include:
- Live PA sound
- DJ playback
- Floor monitoring
- Speech reinforcement
- Background music
- Venue sound systems
- Installed audio

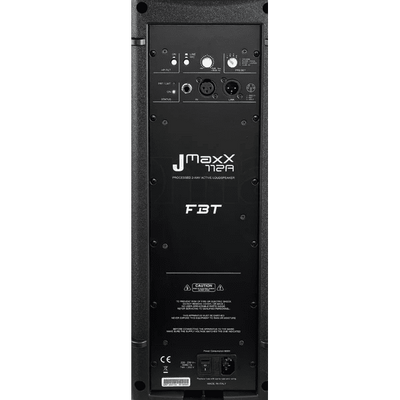

Flexible Rear Panel Control
The rear control panel provides simple and practical operation for live sound and installation use.
Rear panel features include:
- XLR/Jack input
- XLR link output
- Level control
- Preset switch
- HP filter button
- Line/Mic button
- PRT/LIMITER status LED
- ON status LED
Mounting and Stage Monitor Options
The JMaxX 112A offers flexible positioning for portable PA, stage monitoring and fixed installation.
Mounting options include:
- 2 x M10 suspension points
- 1.38-inch top-hat speaker stand socket
- Wall bracket mount flange plate
- Optional mounting bracket compatibility
The asymmetrical cabinet profile also allows use as a floor monitor at 12°, 40° or 55°, making it useful as both a main PA speaker and stage monitor.
What's Included
- FBT JMaxX 112A Active Loudspeaker
- Retail Packaging
- Manufacturer Documentation
Ideal Applications
- Live Sound PA Systems
- DJ Systems
- Stage Monitoring
- Bands and Solo Artists
- Schools and Corporate AV
- Restaurants and Pubs
- Background Music and Announcements
- Clubs and Bars
- Auditoriums and Theatres
- Gyms
- Houses of Worship
- Transportation Terminals
- Rental Sound Reinforcement
- Fixed Installations
