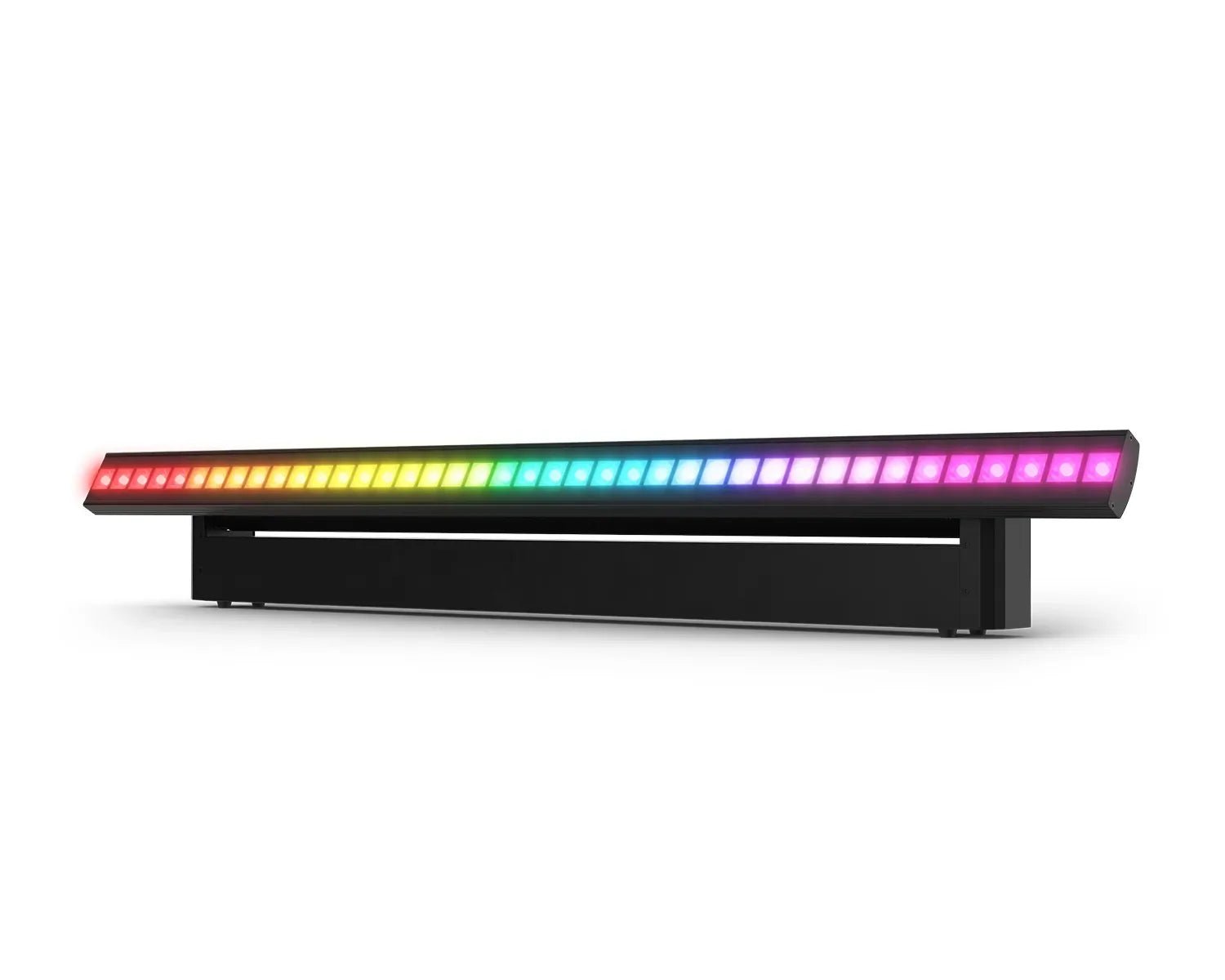

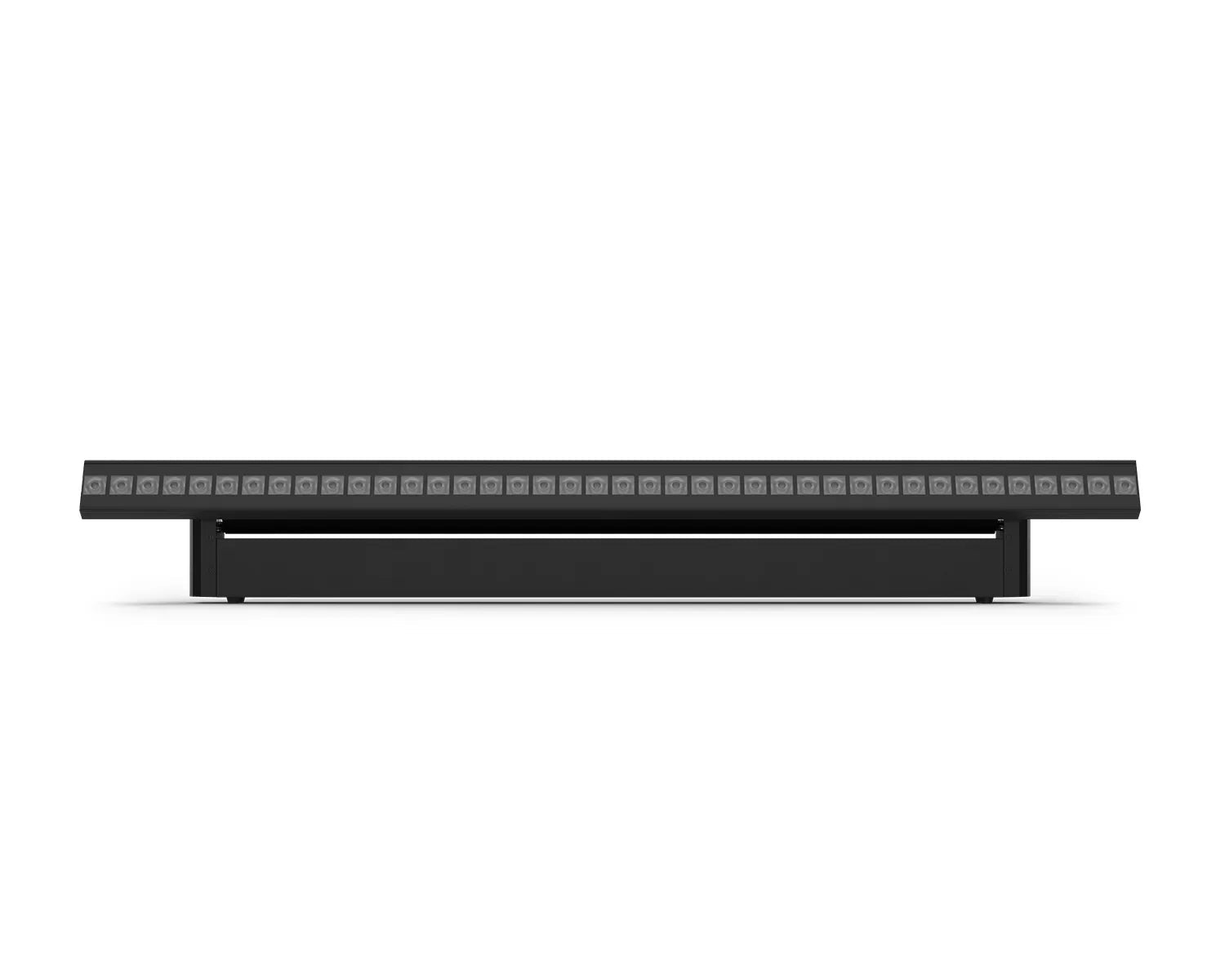

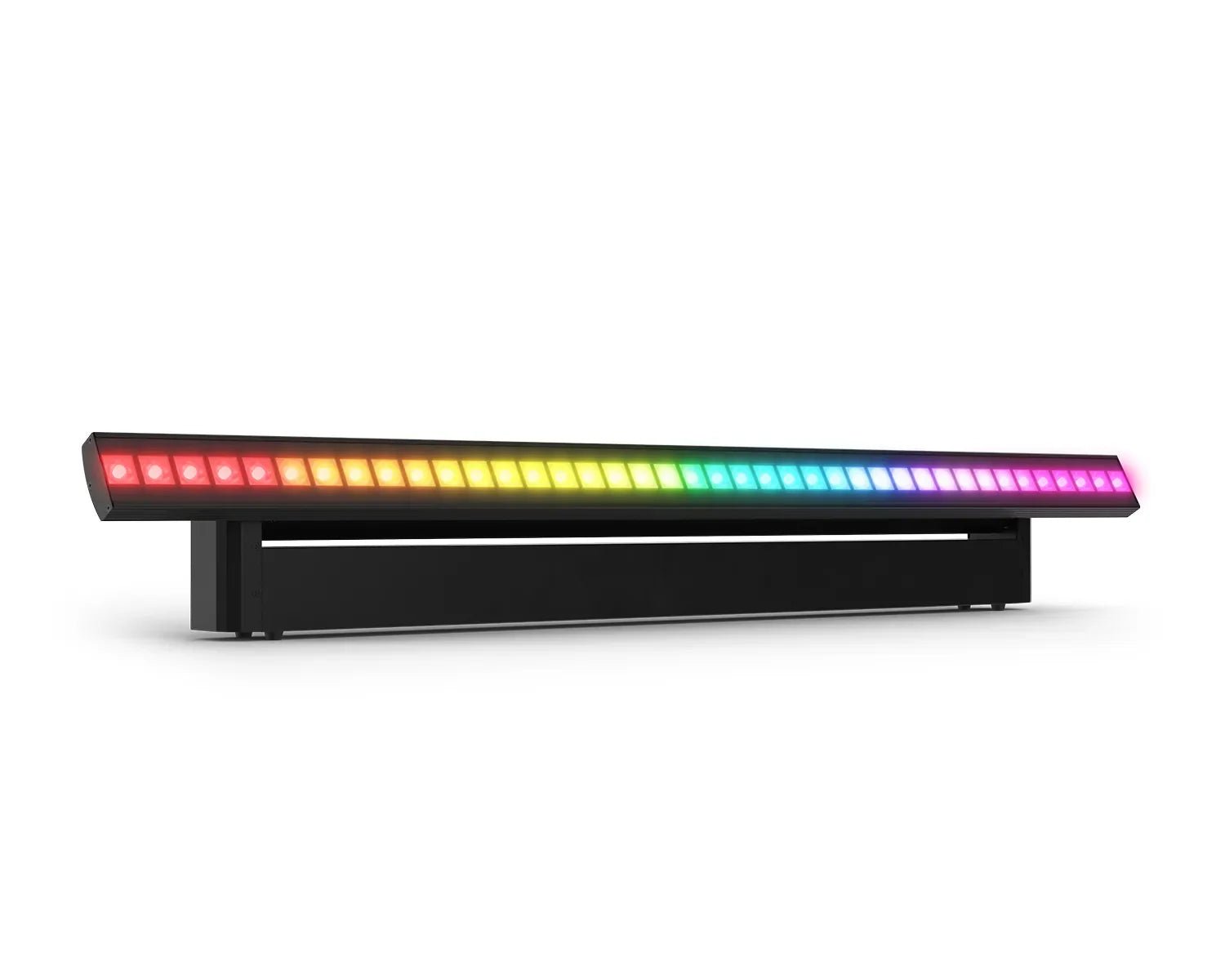

Chauvet COLORband Spectra ILS Moving Batten

COLORband Spectra ILS is a low-profile motorised strip light that slides into event spaces like it was made to disappear. Till it lights up and steals the show with high-energy motion, sweeping beams, bright blinder blasts and eye-catching pixel chases. Mix elegant, tunable warm white or vibrant electric colour with 40 mappable LEDs. Own the room with 180 degrees of tilt. Unleash a new level of control with a sleek ILS powerhouse that triggers synchronised shows across your CHAUVET DJ rig. Whether you’re building a wedding vibe, a club throwdown, or a rooftop set, COLORband Spectra ILS puts you in command of a mind-blowing creative arsenal.

Features



  • Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer
  • Built-in motors ensure the light can be angled anywhere
  • Create eye-catching animations and effects with individual pixel control
  • Multiple control options such as DMX, ILS, RF, or master/slave for complete flexibility
  • D-Fi USB compatibility for wireless master/slave or DMX control
  • Flexible control options with onboard 3 and 5-pin DMX connectors
  • powerCON®-compatible power input/output connections for power linking
  • Fits best in the CHS-60 VIP Gear Bag


What's in the box



  • COLORband Spectra ILS
  • Power cable
  • Omega Bracket
  • Quick Reference Guide

DMX Channels: 6, 11, 17, 19 or 164
DMX Connectors: 3- and 5-pin XLR
Tilt: 180°
Light Source: 40 LEDs (quad-colour RGB+WW), 0.7A, 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 17°
Field Angle: 32°
Illuminance 3,872 lux @ 2 m
Lumens: 1,938
Colour Temperature Range: 3,000K-14,000K
Power Linking: 9 units @120 V; 16 units @230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 86 W, 1.3 A @ 120 V, 60 Hz
Power and Current: 72 W, 0.8 A @ 230 V, 50 Hz
Weight: 10 lbs (4.6 kg)
Size: 39.4 x 2.4 x 5.6 in (1000 x 60 x 142 mm)
Optional Controllers: RFC, RFC-XL, ILS Command
Approvals: CE, ROHS
