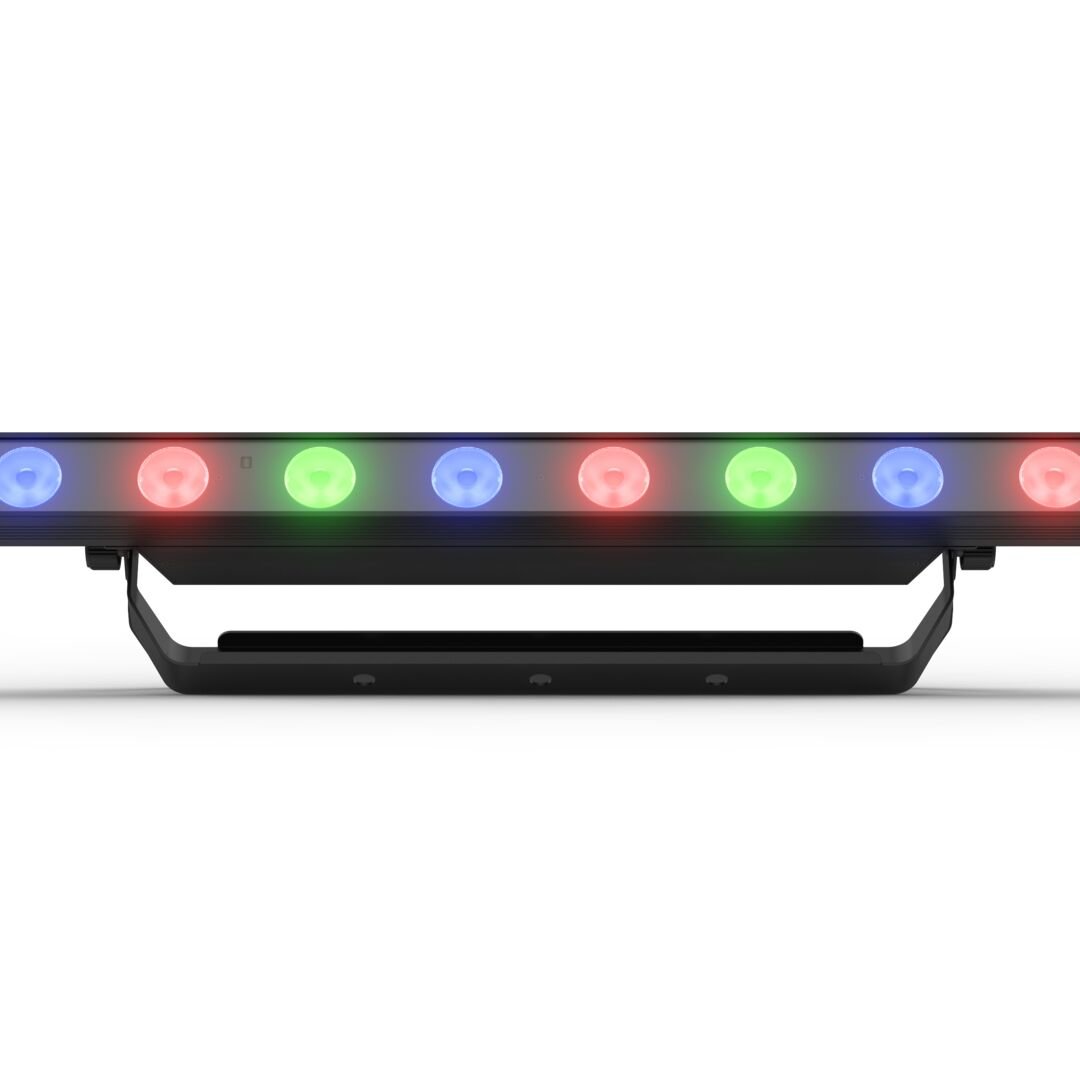

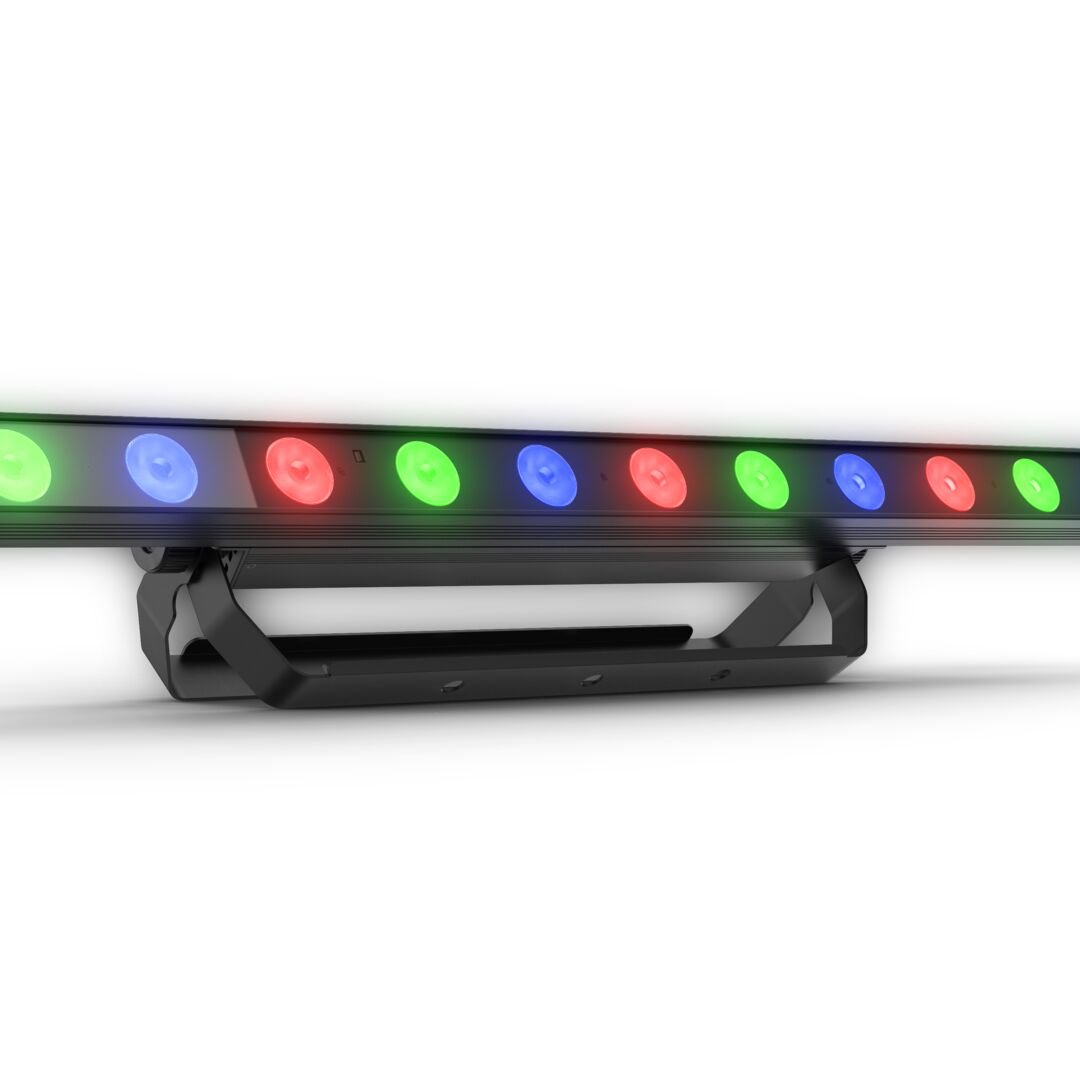

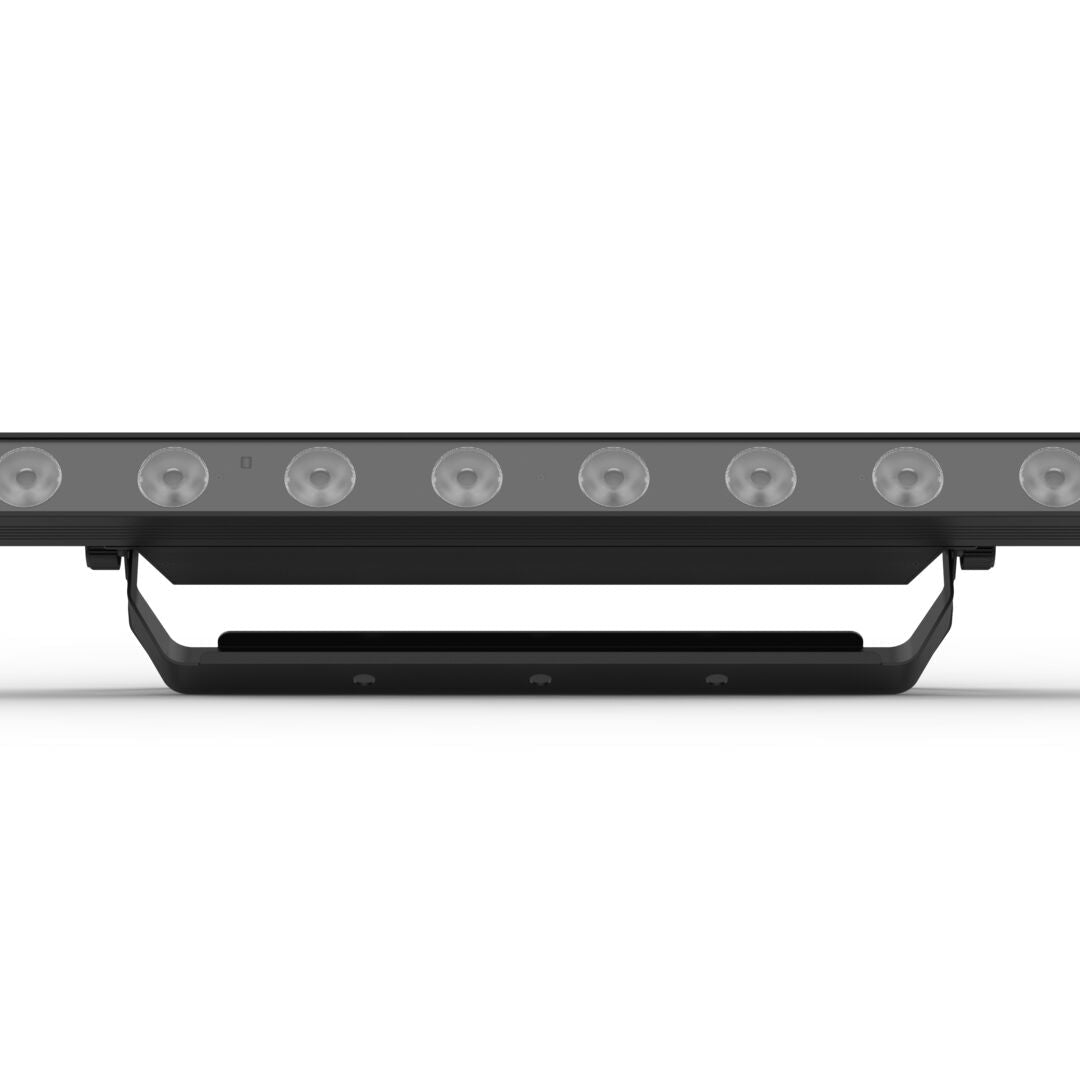

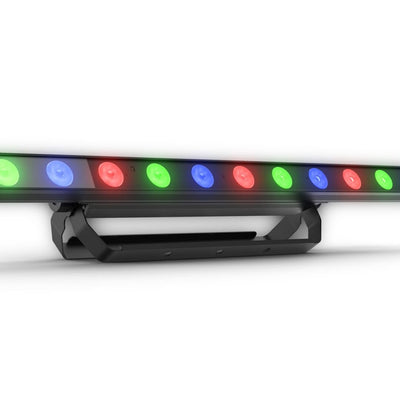

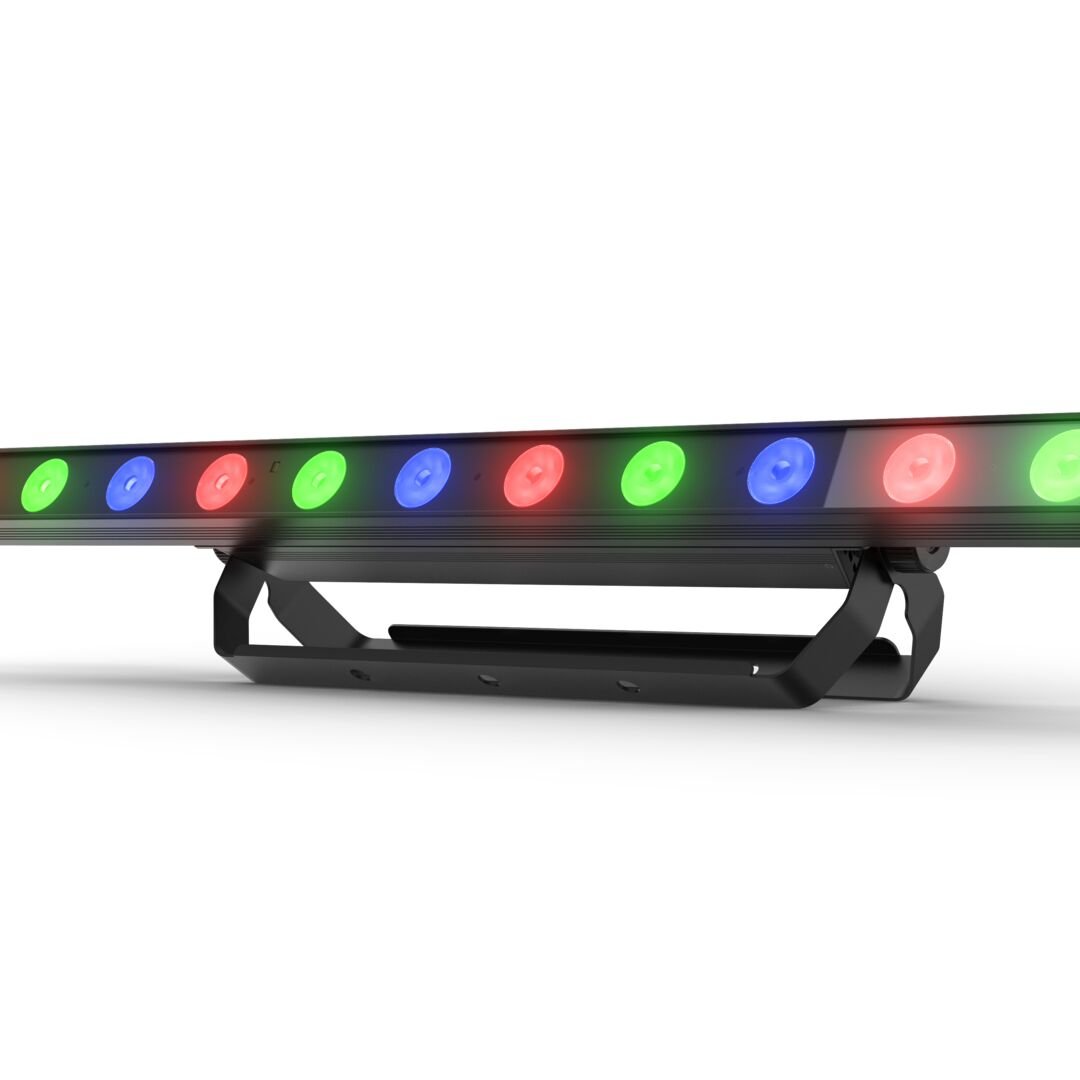

Chauvet COLORband Pix ILS


COLORband Pix ILS is a feature-packed full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer. Its built-in RF receiver offers wireless control using the RFC or RFC-XL optional remotes and compatibility with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. But there’s more! COLORband Pix ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control. Create amazing animations and video effects with individual LED control and access multiple pre-built programs with or without DMX. COLORband Pix ILS is also great for on-camera use because of its flicker-free operation. Easily generate complex shows with ShowXpress Pixels and COLORband Pix ILS is ideal for quiet applications due to its silent operation and no moving parts.

Highlights
  • Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
  • Create amazing animations and video effects with individual LED control
  • Convenient access to multiple pre-built programs with or without DMX
  • Easily generate complex shows with ShowXpress Pixels
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Ideal for quiet applications due to silent operation and no moving parts
  • Easily transports in the optional CHS-60 VIP Gear Bag

DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41

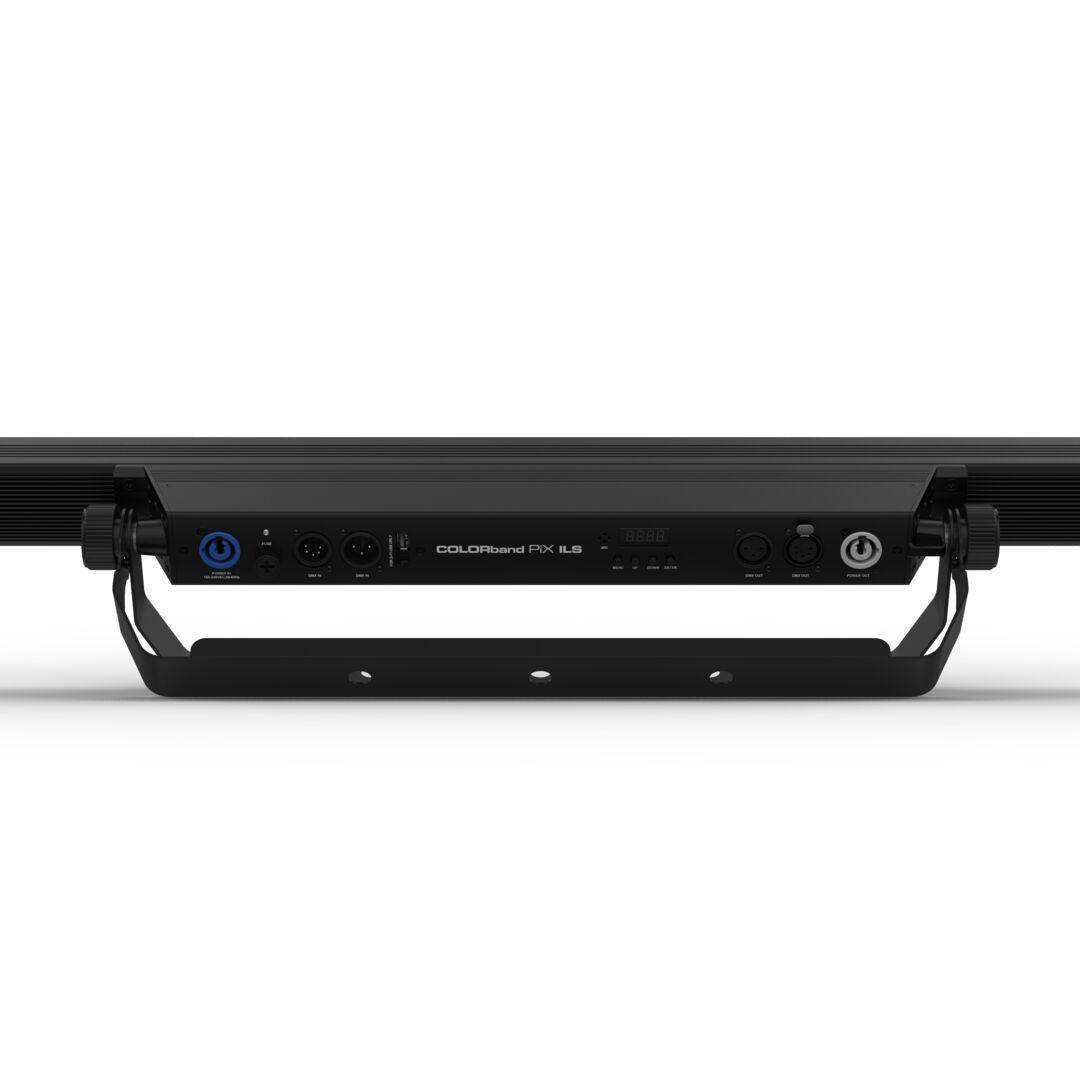

DMX Connectors: 3- and 5-pin XLR
Light Source: 12 LEDs (tri-colour RGB) 3 W (1,000 mA), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 27°
Illuminance:
(2m): 4,142 lux @ 2 m
(5m): 663 lux @ 5 m
Lumens: 1402
Power Linking: 19 units @ 120 V; 35 units @ 230 V
Power and Current:
49 W, 0.7 A @ 120 V, 60 Hz
48 W, 0.4 A @ 230 V, 50 Hz
Weight: 7 lb (3.2 kg)
Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
Approvals: CE, MET, UKCA, RoHS
Cable Length: 5 ft (1.5 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: RFC, RFC-XL, DFI-USB
