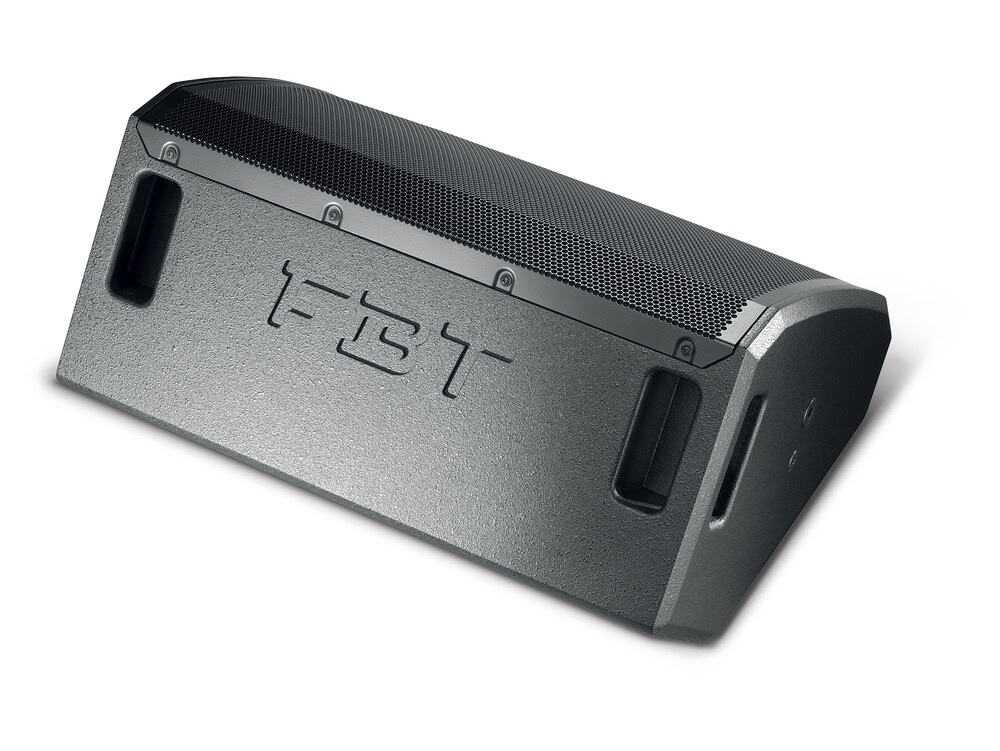

FBT Audio Ventis 112MA Active Stage Monitor

12" + 1" Conical 700w + 200w With DSP Active Stage Monitor

The Ventis 112MA is a dedicated floor monitor for use on small to medium-sized stages. This Active speaker features a a 12" coaxial custom woofer with 2,5" voice coil and 1" exit throat B&C with 1,7" voice coil. The built in amp module features 700W + 200W Delivering 129dB SPL. optional brackets for installation are available.
Product Description


The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12”) coaxial custom woofer with a 64mm (2.5’’) voice coil, 25mm (1”) B&C throat and 44mm (1.7”) voice coil.

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38’’) stand socket, two integrated carrying handles and an optional wall mount bracket.

Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.

Bi-amped
Speakers equipped: 12" Woofer and 1" tweeter
Performance: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configureable memory slots
Housing material: 15 mm birch plywood
Coverage pattern (nominal): 90° conical
Frequency range: 55 Hz - 20.000 Hz (-6 dB)
Max SPL: 133 dB
Inputs: XLR / Jack combined input and RCA ("Cinch" stereo)
Left output: XLR male
Dimensions: (W x H x D): 563 x 311 x 452 mm
Weight: 17.5 kg
Colour: Black

Configuration: 2 Way Coaxial
Input connector: XLR with loop, RCA Stereo
AC Power requirements: 640VA
Configuration: 2 Way Coaxial
Built-in Amplifier LF/HF: 700/200W RMS
Built-in Amplifier Peak LF/HF: 1400/400W
Frequency Response: 55Hz - 20kHz
Low Frequency Woofer: 12" / 2.5" coil
High Frequency Driver: 1" / 1.7" coil
Dispersion: 90° conical
Power Cord: 5m Neutrik True1
Net Dimension (WXHXD): 551 x 300 x 453 mm
Net Weight: 17.5kg
Transport Dimension (WXHXD): 615 x 367 x 472 mm
Transport Weight: 19.5kg
